"Gentle" sorting of large parcels
Flap Sorter - Sping Series
Flap Sorter
This sorting solution allows for the efficient arrangement of a large number of sorting chutes in a compact space.

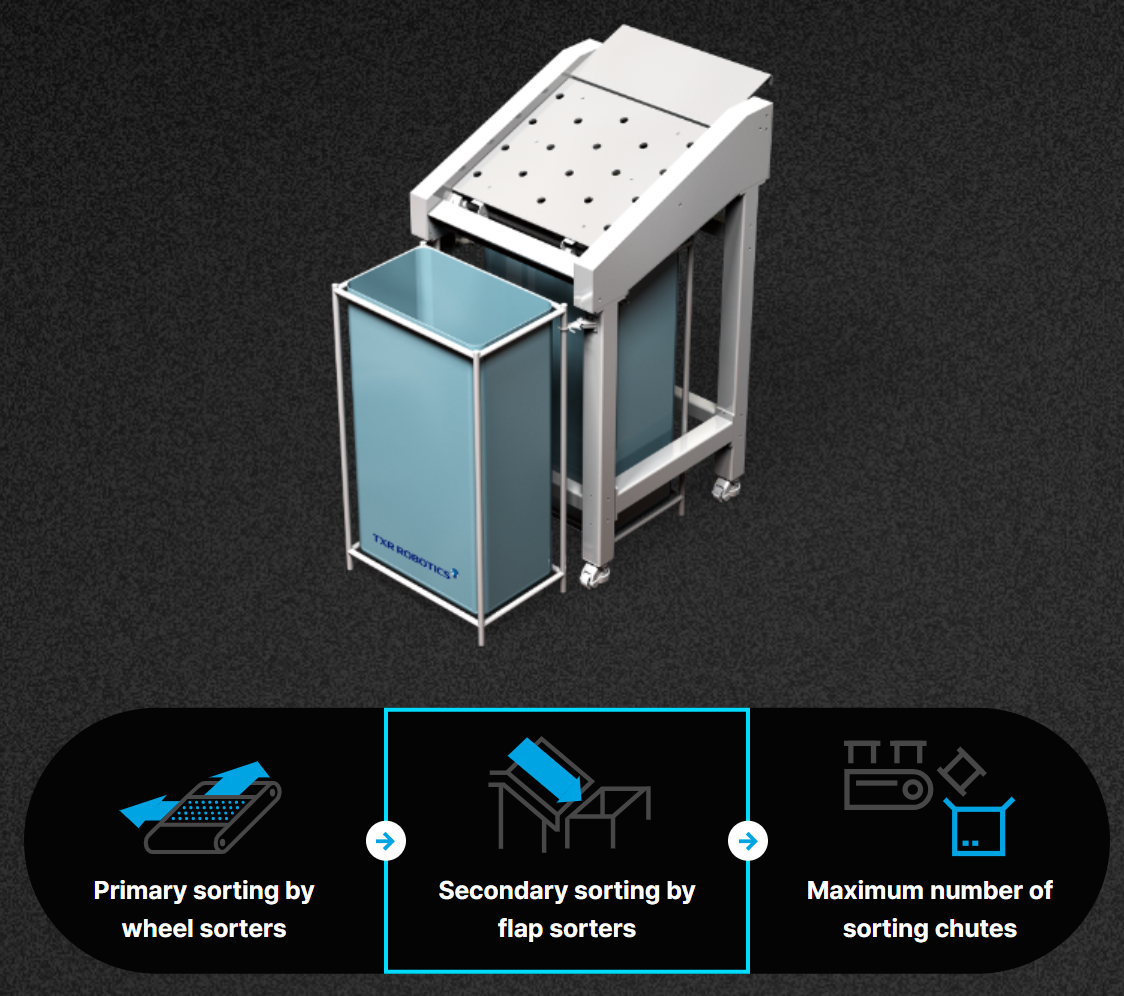

The initial sorting is conducted using wheel sorters, followed by a secondary sorting stage with flap sorters. This method reduces the number of wheel sorters required by half, significantly decreasing the installation area.
This solution enables the installation of a large number of sorting chutes in a limited space.
- Intelligent Sorting Solution
- Smallest wheel pitch in the world(55mm)
- Ease of expansion and maintenance
- Simple layout
- No Noise Equipment
Specification

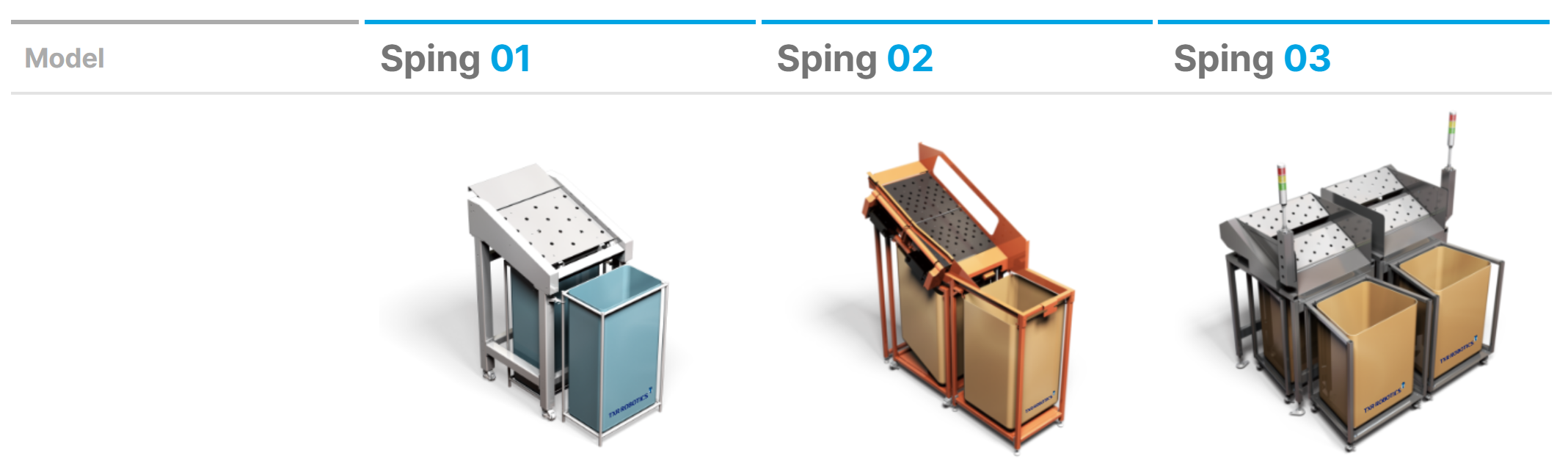

| Parcel dimensions (W x L x H) | Max. (mm / Kg) | 300 x 300 x 150 / 4 | 400 x 400 x 200 / 5 | 300 x 300 x 150 / 4 |
|---|---|---|---|---|
| Min. (mm / g) | 100 x 100 x 1 / 100 | 100 x 100 x 1 / 100 | 100 x 100 x 1 / 100 | |
| Sorting direction | 2-way | 2-WAY | 2-WAY | |
| Processing performance | Max. 5,000 items / h | Max. 5,000 items / h | Max. 6,000 items / h | |
| Coating | Low-friction powder coating | Low-friction powder coating | Low-friction powder coating | |
| Operating temperature | -20℃ ~ 45℃ | -20℃ ~ 45℃ | -20℃ ~ 45℃ | |
Efficiently create intelligent logistics equipment
